Pick and Place

Product Line

Our pick and place case packer machines have the ability to reach speeds up to 30 cases per minute, depending on the application. Likewise, they can service multiple industries with optional bladder, gripper, or vacuum tooling. Fully customizable with the ability to add lane dividers, vision system, flap control, sheet inserts, and inverted robotic arms.

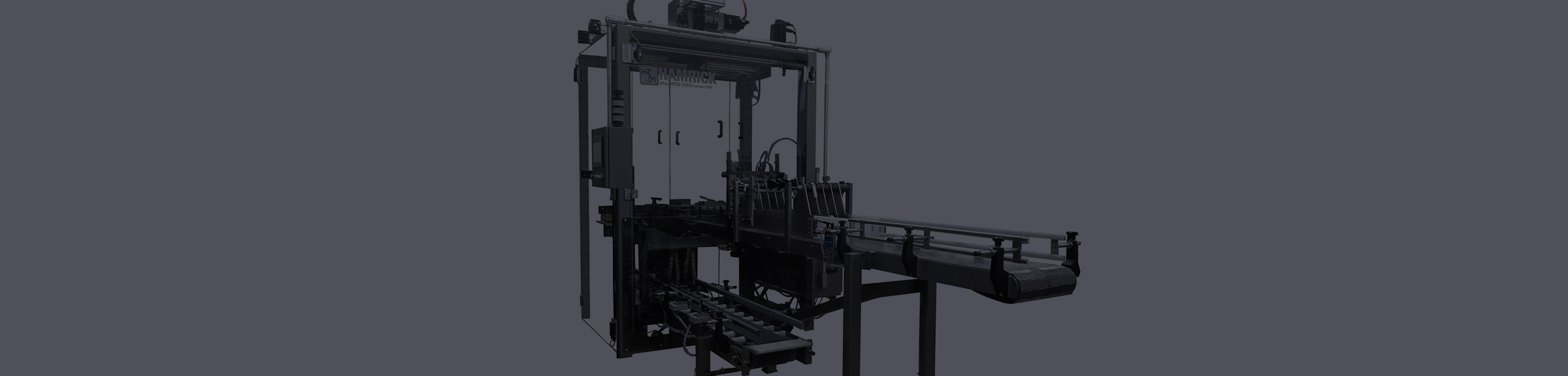

Pick & Place Case Packers

Standard Features of Pick & Place Case Packers

• AKD brushless servo drive with continuous output
• VLM series brushless servo motor with NEMA 34 mount
• Micron planetary gear reducer with 3:1 ratio and interface
• HBOT XZ actuator with 24×24” stroke
• Lane product count and back-up photo-eyes
• Allen-Bradley MicroLogix 1400 PLC with PanelView 300 HMI
• Infeed and outfeed case photo-eyes
• NEMA 12 electrical
• Polished stainless steel base and frame covers
• Lexan safety interlocked guarding
• Steel-It corrosion resistant paint
• Centralized cluster lubrication points
• One set of change parts
• Two instruction/part manuals
• One year warranty
• 100% money back guarantee

Applications

Our Pick & Place Case Packer Machines are designed and manufactured for the following applications:

• Bottles
• Jars
• Cans
• Jugs
• Pails
• Boxes
• Cartons (including gable-top)
• Spray Containers
• Pump-top containers
• Containers with bails and handles
• Glass containers
• Plastic containers
• Rigid containers
